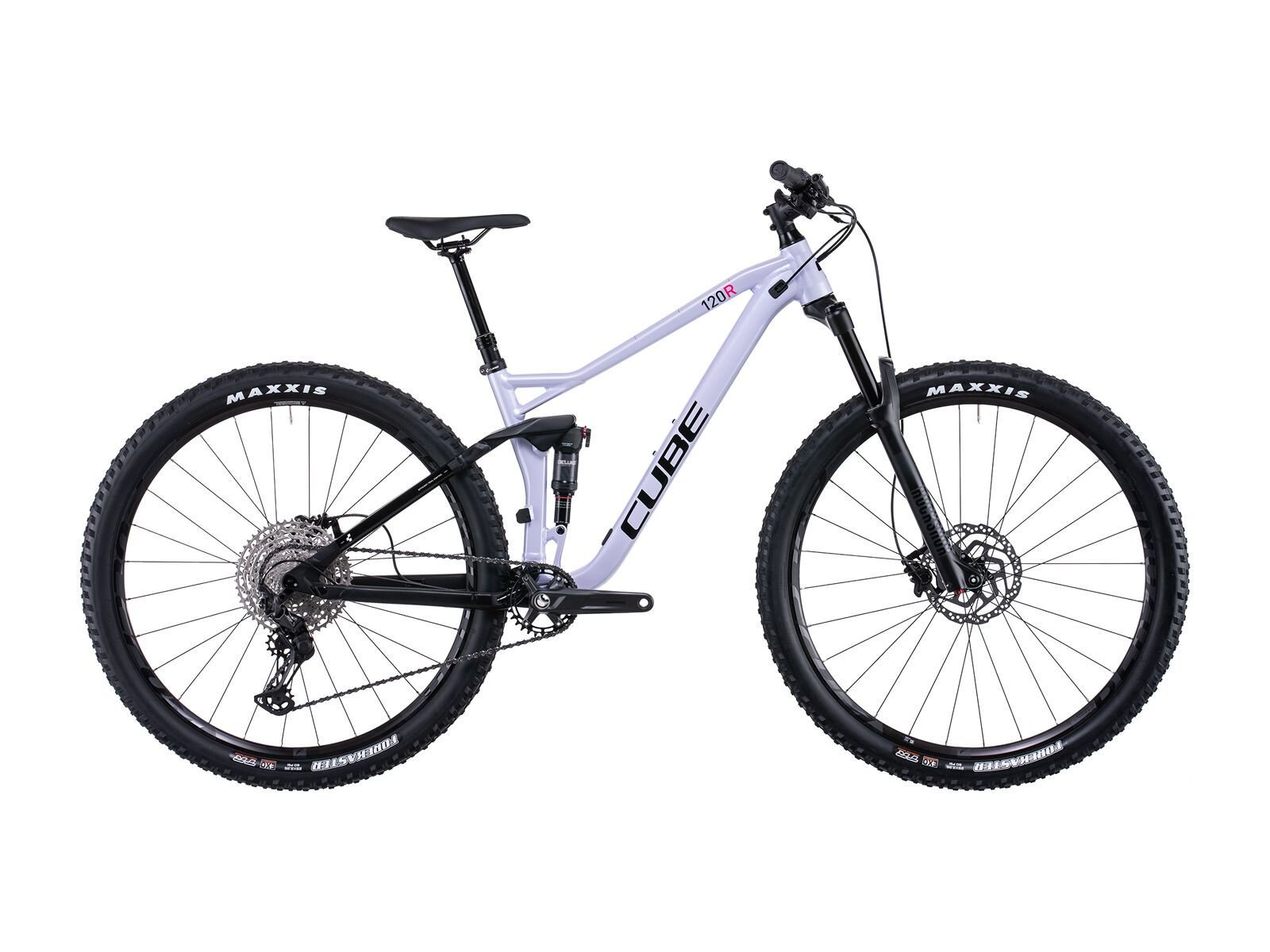

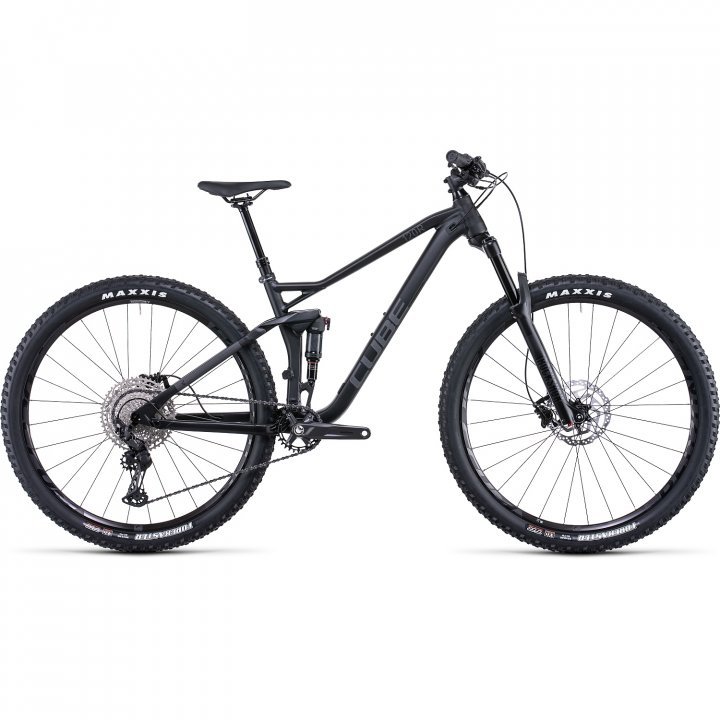

CUBE STEREO 120 Race – Mountain Bike – 2022
No surprises – we check every bike!
Due to the tense delivery situation, some Cube bikes are delivered with different equipment. Alternative components correspond to the same price/quality level.
Our information in the datasheet corresponds to the components that will be installed on your bike. We highlight differences to the standard equipment in color.
Important: The product photos will differ in these cases!
Trail adventures made easy – mount and go!
Leader in its class in terms of trail performance and riding comfort – the CUBE Stereo 120 Race has earned this title. Because: CUBE has equipped this bike with the super-reliable XT 1×12 gear system from Shimano, as well as the matching, evenly decelerating, powerful Shimano hydraulic disc brakes.
Uphill and downhill you are always safe and confident on your way. Other highlights are the retractable CUBE seat post, the Fulcrum wheelset, and a Newmen Evolution cockpit. And because trails can be pretty bitchy and rough from time to time, CUBE has installed a 130mm Recon Gold suspension fork from RockShox and a Deluxe Select+ damper.
The SizeSplit system now even includes an XS version with 27.5-inch wheels for smaller riders who don’t want to forego maximum performance.
Features of CUBE STEREO 120 Race:
- High-performance aluminum frame
- Advanced hydroforming
- Agile Trail Geometry
- Efficient trail control
- ETC 4 link
- AXH
- Internal routing
- Boost 148
TECHNICAL SPECIFICATION OF CUBE STEREO 120 RACE – MOUNTAIN BIKE – 2022
| Product name: | CUBE STEREO 120 Race – Mountain Bike – 2022 |
| Manufacturer: | CUBE bikes |
| Item number: | CUB559143 |
| Activity: | bicycle |
| Gender: | Men’s |
| Material: | aluminum |
| Area of application: | MTB, trail |
| Chain: | Shimano CN-M6100 |
| Cassette: | Shimano Deore CS-M6100 |
| shifter: | Shimano Deore SL-M6100, Rapidfire Plus |
| rear derailleur: | Shimano XT RD-M8100-SGS, ShadowPlus, 12-speed |
| chainring gradation: | 30 |
| crank length: | 170, 175 |
| Crank: | Shimano FC-MT511, Boost, 175mm (170mm for XS/S) |
| Brakes: | Shimano BR-MT500, hydraulic disc brake (180/180mm) |
| impellers: | Fulcrum Red 77, 28/28 spokes, 15x110mm/12x148mm, tubeless-ready |
| Seat post: | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, (XS: 100mm, S: 120mm, M/L/XL: 130mm) |
| Saddle: | Natural Fit Venec Lite |
| Handlebar: | Newmen Evolution SL 318.25, 760mm |
| Stem: | Newmen Evolution 318.4, 31.8mm |
| Fork: | RockShox Recon Gold RL Air, Tapered, 15x110mm, 130mm |
| Tax rate: | VP Tapered, Top Zero-Stack 1 1/8″ (OD 44mm), Bottom Zero-Stack 1 1/2″ (OD 56mm) |
| Framework: | HPA Advanced Hydroform, ATG, ETC 4-Link, AXH |
| vector group: | Shimano |
| Cassette gradation: | 10-51 |
| Number of chainrings: | 1 |
| Circuit: | 12 speed |
| Shift actuation: | Mechanically |
| Type of brake: | disc brake |
| wheel size: | 27.5″ / 650B (584mm), 28″ (29″) (622mm) |
| handles: | ACID React Pro |
| Mute: | RockShox Deluxe Select+, 190x45mm, rebound adjust, lockout |
| Dropper post: | Yes |
| rear suspension system: | Fully (sprung) |
| Travel fork: | 130 |
| Tires: | Maxxis Forekaster, EXO, Tubeless Ready, 2.35 |
| model year: | 2022 |
| Color: | black, violet white, silver-white |
| Fork type: | classic |
| Weight: | 14.5 Kg |
| cable routing: | internal |
