A stable, smooth-running bike that conveys self-confidence and is great fun!

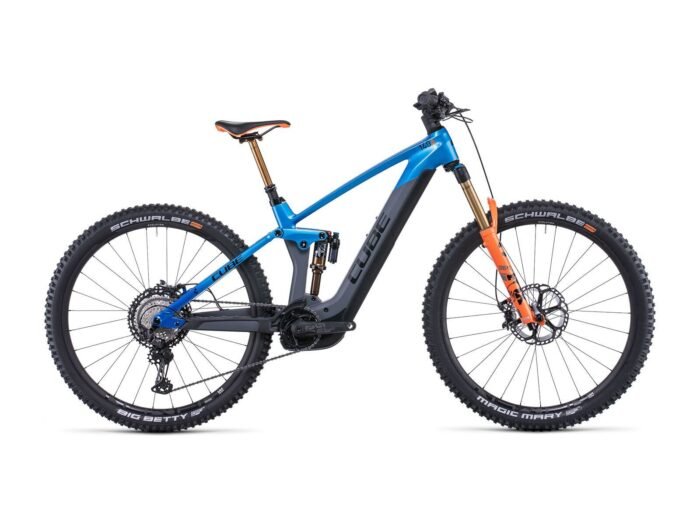

Small but perfectly proportioned: The CUBE Stereo Hybrid 140 HPC Actionteam 625 is the epitome of first-class all-mountain e-bike performance. Shimano XT brakes with 4-piston construction meet super grippy Schwalbe Magic Mary SuperTrail and Big Betty SuperGravity 2.4 inch tires, the result: the most precise speed control, in all possible and impossible conditions.
Shimano also contributes its XT 12-speed gearbox, which fine-tunes the power from the legs – and the propulsion of the Bosch CX engine (Generation 4) with 625 Wh battery – to the Newmen Evolution wheels and then to the trail. The Fox 36 Float Factory fork, the Float X Factory shock, and the retractable Seatpost with remote provide the final trail-specific touch. Clear case, here you are dealing with a real winner!
Features of CUBE STEREO HYBRID 140 HPC Actionteam 625:
- C:62 Monocoque Carbon Frame
- Advanced Twin Mold Technology
- Agile Trail Geometry
- Efficient Trail Control
- Boost148
- FSP4 Link
- Internal train guidance
- Fully integrated battery
- Holders for bottle holders
TECHNICAL SPECIFICATIONS OF CUBE STEREO HYBRID 140 HPC ACTIONTEAM 625Wh CARBON MTB E-BIKE
| Product name: | CUBE STEREO HYBRID 140 HPC Actionteam 625Wh MTB E-Bike |
| Manufacturer: | CUBE bikes |
| Item number: | CUB560005 |
| Activity: | bicycle |
| Gender: | Men’s |
| Material: | carbon |
| Area of application: | E-Bike, MTB |
| Chain: | Shimano CN-M8100 |
| Cassette: | Shimano XT CS-M8100 |
| shifter: | Shimano XT SL-M8100-IR, Direct Attach |
| rear derailleur: | Shimano XT RD-M8100-SGS, ShadowPlus, 12-speed |
| chainring gradation: | 34 |
| crank length: | 165 |
| Crank: | e*thirteen Plus Crank |
| Brakes: | Shimano XT BR-M8120, hydraulic disc brake (203/203mm) |
| impellers: | Newmen Evolution SL EG 30, 28/28 spokes, 15x110mm/12x148mm, tubeless ready |
| Seat post: | Fox Transfer Factory 31.6mm, Kashima Coated (XS: 100mm, S: 125mm) |
| Saddle: | Natural Fit Venec |
| Handlebar: | Newmen Advanced 318.25, Carbon, 780mm |
| Stem: | CUBE Performance Stem E-MTB, 31.8mm |
| Fork: | Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated |
| Tax rate: | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm) |
| Framework: | C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery |
| vector group: | Shimano |
| Cassette gradation: | 10-51 |
| Battery energy: | 625Wh |
| Number of chainrings: | 1 |
| Circuit: | 12 speed |
| Shift actuation: | Mechanically |
| E-bike battery: | Bosch PowerTube 625Wh |
| Supported speed: | max. 25km/h |
| motor unit: | Bosch |
| Motor position: | mid-engine |
| Type of brake: | disc brake |
| wheel size: | 27.5″ / 650B (584mm) |
| Bicycle special equipment: | Bosch 4A charger, Bosch Kiox display, e*thirteen Plus e*spec chain guide |
| handles: | ACID Disrupt, Soft Compound |
| Mute: | Fox Float X Factory, 185x55mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated |
| Dropper post: | Yes |
| rear suspension system: | Fully (sprung) |
| Travel fork: | 150 |
| Tires: | Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4 / Schwalbe Big Betty, Addix Soft, Super Gravity, Tubeless Easy, 2.4 |
| model year: | 2022 |
| Color: | Grey, Blue, Orange |
| Fork type: | classic |
| Weight: | 24 Kg |
| Manufacturer article number: | 536252 |
| cable routing: | internal |
