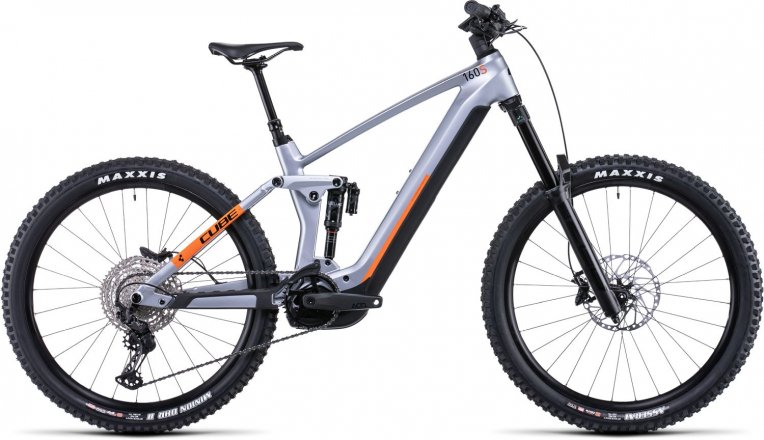

Buy Cube Stereo Hybrid 160 HPC SL 750 27.5 – 2022 – Mountain E-Bike
Due to bottlenecks and delays in the global supply chains, it is possible that the manufacturer has replaced individual components of the original specifications with at least equivalent or even higher-quality components. The delivered bike may differ from the illustrations in individual cases.
Brand new for the 2022 season is the Stereo Hybrid 160 HPC 750 frame – a successful combination of sensational trail skills, top handling, and a range that invites you to dream. The Bosch motor (4th generation) and the high-capacity 750 Wh battery, which are completely and almost invisibly integrated into the down tube, bring plenty of power and an appealing aesthetic.
An impact-resistant cover reliably protects the battery and can be removed at the push of a button, making it easy to remove. The lock also disappears elegantly behind the cover. And because the shift and brake cables run inside, there are no cable holes in the area of the head tube – the advantage: more stability and a tidy look.
In addition, Cube has equipped the chassis with a trunnion damper mount, extra large bearings, a Boost 148 thru-axle and a 1.5-inch head tube for super-precise steering even at high speeds. And thanks to the clever race-oriented geometry, you can conquer even the toughest trail in no time at all.
Downhill, the powerful, progressive Shimano hydraulic disc brakes with oversized rotors on the front and rear wheels decelerate the bike safely and in a controlled manner. And the retractable seat post with a remote is also great downhill. Enduro power on!
Curtain up for the Stereo Hybrid 160 HPC SL 750, an eMTB that pushes the boundaries of what is possible. It owes its propulsion – and its enormous range – to the fourth-generation Bosch CX motor with a high-capacity 750 Wh battery.
It also impresses with a well-thought-out mix of power and all-round trail performance. And thanks to the efficiently springy RockShox Zeb Select fork, the Deluxe Select+ damper, and the cleverly designed kinematics, you can conquer even the trickiest trail without any problems.
The legendary XT 12-speed gear system from Shimano shows off its qualities – and its wide range of gear ratios – on climbs
Specifications of Cube Stereo Hybrid 160 HPC SL 750 27.5
| PRODUCT | Cube Stereo Hybrid 160 HPC SL 750 27.5 E-Bike |
|---|---|
| MODEL YEAR | 2022 |
| RIDING TYPE | Enduro / All-Mountain, Freeride / Bike Park |
| RIDER | Unisex |
| SIZES AND GEOMETRY |
M (18″), L (20″), XL (22″)
|
| WHEEL SIZE | 27.5″ (650b) |
| E-BIKE CLASS | Class 1: Pedal Assist (Pedelecs) |
| MOTOR | Bosch Drive Unit Performance CX Generation 4 Cruise, 85Nm max torque, 250W, Smart System |
| BATTERY | Bosch PowerTube, integrated |
| BATTERY CAPACITY | 750 Wh |
| DISPLAY/REMOTE | Bosch Kiox 300 |
| MODES | Turbo, Sport/eMTB, Tour, Eco, Walk Assist |
| MAX SPEED WITH ASSIST | 12.5 mph (20 km/h) |
| FRAME MATERIAL | Carbon Fiber |
| FRAME MATERIAL DETAILS | C:62 Monocoque carbon front triangle, Advanced Twin Mold Technology; 6061-T6 aluminum rear triangle; molded chainstay protection |
| REAR TRAVEL | 160mm |
| REAR SHOCK | RockShox Deluxe Select+, rebound adjust, trunnion mount, 205mm x 65mm |
| FORK | RockShox ZEB Select, Charger RC damper, eMTB Approved |
| FORK TRAVEL | 170mm |
| HEAD TUBE DIAMETER | Straight, 1.5″ |
| HEADSET | ACROS AZF-1035, ZS56 upper/lower, ICR (Integrated Cable Routing), Block Lock 120° |
| HANDLEBAR | Newmen Evolution SL, 780mm width, 31.8mm clamp diameter |
| STEM | Cube Performance E-MTB, 31.8mm bar clamp |
| GRIPS | Acid Disrupt, soft compound |
| BRAKES | Shimano Deore M6120, 4-piston, 203mm rotors |
| BRAKE LEVERS | Shimano Deore M6120 |
| DRIVETRAIN | 1x |
| SHIFTERS | Shimano Deore M6100, 12-speed, direct attach |
| FRONT DERAILLEUR | None |
| REAR DERAILLEUR | Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage |
| CHAINGUIDE | Upper slider |
| CRANKS | Acid E-Crank, 165mm length |
| CHAINRINGS | Acid, 36 tooth |
| PEDALS | None |
| CHAIN | Shimano Deore M6100, 12-speed |
| CASSETTE | Shimano Deore M6100, 12-speed, 10-51 tooth |
| RIMS | Newmen Performance 30 wheelset, 28 hole, tubeless ready |
| HUBS | Newmen Performance 30 wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver |
| SPOKES | Newmen Performance 30 wheelset |
| TIRES | Front: Maxxis Assegai, 3C MaxxGrip, EXO+, TR, 27.5″ x 2.5″ WT Rear: Maxxis Minion DHR II, 3C MaxxGrip, Double Down (DD) casing, TR, 27.5″ x 2.4″ WT |
| SADDLE | Natural Fit Venec |
| SEATPOST | Cube dropper Drop: 125mm (MD), 150mm (LG/XL) |
| SEATPOST DIAMETER | 31.6mm |
| SEATPOST CLAMP | Cube Screwlock, semi-integrated, 34.9mm |
| REAR DROPOUT / HUB DIMENSIONS | 148x12mm Boost |
| MAX. TIRE SIZE | 67mm (2.6″) |
| BOTTLE CAGE MOUNTS | One inside front triangle |
| COLORS | Aquamarine and Black, Desert and Black, PolarSilver and Orange |
| WARRANTY | 3 years frame |
| WEIGHT | 54 lb 0.2 oz (24,500 g) |
| MISCELLANEOUS | • FSP 4-Link suspension design • ICR (Integrated Cable Routing) • SRAM UDH (Universal Derailleur Hanger) • Includes Bosch 4A battery charger |
