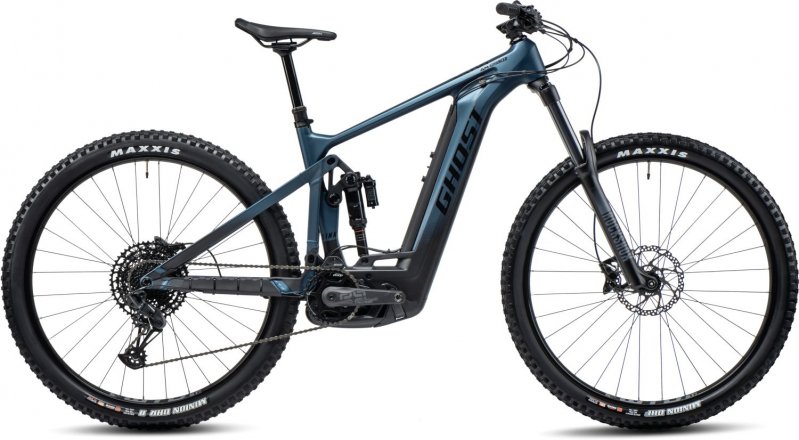

Ghost E-Riot AM Advanced E-Bike For Sale Online
All Mountain – this is synonymous with high mountains, long tours, and a versatile area of application. High-quality components from SRAM and Shimano, suspension elements from Rock Shox with 160mm front and rear as well as Bosch motor and battery make this e-mountain bike a reliable companion for demanding bikers who do not want to commit themselves to where and how they ride.
If you have precise ideas about how your e-bike works best for you, you will get your money’s worth with the Bosch Smart System: The interaction of motor, battery, and display can now be individually configured via an app. The carbon frame significantly reduces weight and promotes driving pleasure – both uphill and downhill
Specifications of Ghost E-Riot AM Advanced E-Bike
| PRODUCT | Ghost E-Riot AM Advanced E-Bike |
|---|---|
| MODEL YEAR | 2022 |
| RIDING TYPE | Enduro / All-Mountain |
| RIDER | Unisex |
| SIZES AND GEOMETRY |
S, M, L, XL
|
| WHEEL SIZE | 27.5″ (650b), 29″ |
| E-BIKE CLASS | Class 1: Pedal Assist (Pedelecs) |
| MOTOR | Bosch Performance CX Gen4 |
| BATTERY | Bosch PowerTube, integrated |
| BATTERY CAPACITY | 750 Wh |
| DISPLAY/REMOTE | Bosch Kiox 300 |
| MODES | Turbo, Sport/eMTB, Tour, Eco, Walk Assist |
| MAX SPEED WITH ASSIST | 15.6 mph (25 km/h) |
| FRAME MATERIAL | Carbon Fiber |
| FRAME MATERIAL DETAILS | Carbon front triangle, alloy rear triangle, one-piece rocker, molded chainstay protection |
| REAR TRAVEL | 160mm |
| REAR SHOCK | RockShox Super Deluxe Select R, trunnion mount, 205mm x 65mm |
| FORK | RockShox 35 Silver TK, Solo Air spring |
| FORK TRAVEL | 160mm |
| HEAD TUBE DIAMETER | Tapered, 1.125″ top, 1.5″ bottom |
| HEADSET | ACROS Block Lock AZX-582, 135° rotation limit, 44mm upper, 56mm lower |
| HANDLEBAR | Ground Fiftyone, 31.8mm clamp diameter SM: 760mm width, 15mm rise; MD/LG: 780mm width, 15mm rise; XL: 780mm width, 40mm rise |
| STEM | Ground Fiftyone, 45mm length, 31.8mm bar clamp |
| GRIPS | |
| BRAKES | Shimano MT420, 4-piston, 203mm rotors |
| BRAKE LEVERS | Shimano MT420 |
| DRIVETRAIN | 1x |
| SHIFTERS | SRAM SX Eagle, 12-speed, Single Click |
| FRONT DERAILLEUR | None |
| REAR DERAILLEUR | SRAM SX Eagle, 12-speed |
| CHAINGUIDE | MRP upper slider |
| CRANKS | e*thirteen e*spec Plus |
| CHAINRINGS | e*thirteen e*spec Plus, 34 tooth |
| PEDALS | None |
| CHAIN | 12-speed |
| CASSETTE | SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth |
| RIMS | WTB ST i30, 30mm inner width |
| HUBS | Shimano MT400, 15x110mm Boost front, 12x148mm Boost rear with HG driver |
| SPOKES | |
| TIRES | Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, 2.5” Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, 2.6” |
| SADDLE | fi’zi:k Terra Aidon |
| SEATPOST | Ghost Alpha 1 dropper Drop: 125mm (S), 150mm (M), 170mm (L/XL) |
| SEATPOST DIAMETER | 34.9mm |
| SEATPOST CLAMP | Single-bolt |
| REAR DROPOUT / HUB DIMENSIONS | 12x148mm Boost |
| MAX. TIRE SIZE | |
| BOTTLE CAGE MOUNTS | One inside front triangle |
| COLORS | JadeBlue/BlackMatte, BlackMatte/Orange |
| WARRANTY | 5 years frame |
| WEIGHT | N/A |
| MISCELLANEOUS | • TractionLink rear suspension design • S has 27.5″ wheels; M/L/XL have 29″ wheels • Cables routed under downtube cable cover • SRAM UDH (Universal Derailleur Hanger) • Includes Bosch 4A battery charger |
