Description

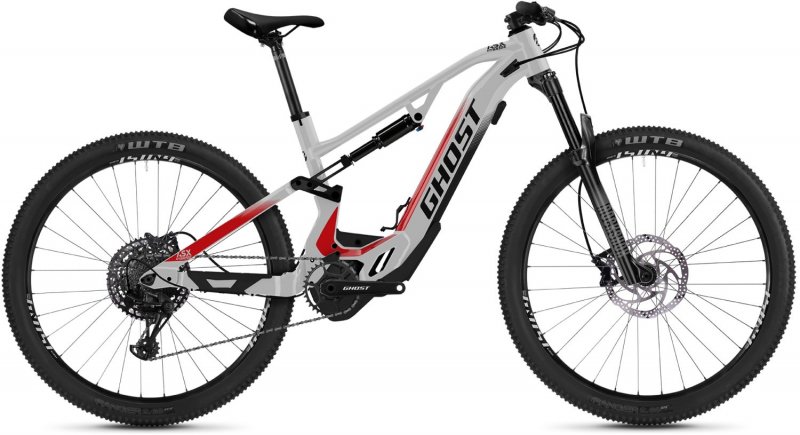

Specifications of Ghost HybRide ASX Base 130 E-Bike
| PRODUCT | Ghost HybRide ASX Base 130 E-Bike |
|---|---|
| MODEL YEAR | 2021 |
| RIDING TYPE | Trail |
| RIDER | Unisex |
| SIZES AND GEOMETRY |
S, M, LG, XL
|
| WHEEL SIZE | 27.5″ (650b), 29″, Other (Mullet) |
| E-BIKE CLASS | Class 1: Pedal Assist (Pedelecs) |
| MOTOR | Bosch Performance CX Gen4 |
| BATTERY | Bosch PowerTube, integrated |
| BATTERY CAPACITY | 625 Wh |
| DISPLAY/REMOTE | Bosch Purion |
| MODES | Turbo, Sport/eMTB, Tour, Eco, Walk Assist |
| MAX SPEED WITH ASSIST | 15.6 mph (25 km/h) |
| FRAME MATERIAL | Aluminum |
| FRAME MATERIAL DETAILS | Molded chainstay and down tube protection |
| REAR TRAVEL | 130mm |
| REAR SHOCK | Hodaka, 185mm x 50mm |
| FORK | RockShox Recon Silver RL |
| FORK TRAVEL | 130mm |
| HEAD TUBE DIAMETER | Straight, 56mm |
| HEADSET | |
| HANDLEBAR | Ground Fiftyone, 31.8mm clamp diameter, 780mm width Rise: 15mm (SM), 25mm (MD/LG), 35mm (XL) |
| STEM | Ground Fiftyone, 31.8mm bar clamp, 45mm length |
| GRIPS | |
| BRAKES | Tektro HDM-735, 4-piston front, 2-piston rear, 203mm rotors |
| BRAKE LEVERS | Tektro HDM-735 |
| DRIVETRAIN | 1x |
| SHIFTERS | SRAM SX Eagle, 12-speed, Single Click |
| FRONT DERAILLEUR | None |
| REAR DERAILLEUR | SRAM SX Eagle, 12-speed |
| CHAINGUIDE | Upper slider |
| CRANKS | Ground Fiftyone |
| CHAINRINGS | Ground Fiftyone, 34 tooth |
| PEDALS | None |
| CHAIN | 12-speed |
| CASSETTE | SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth |
| RIMS | Rodi Tryp, 32 hole |
| HUBS | Fastace DA-201, 15x110mm Boost front, 12x148mm Boost rear with HG driver |
| SPOKES | |
| TIRES | WTB Ranger, 2.6″ |
| SADDLE | Selle Royal 2096HRN |
| SEATPOST | Ghost SP DC1 |
| SEATPOST DIAMETER | 31.6mm |
| SEATPOST CLAMP | Single-bolt |
| REAR DROPOUT / HUB DIMENSIONS | 12x148mm Boost |
| MAX. TIRE SIZE | |
| BOTTLE CAGE MOUNTS | One inside front triangle |
| COLORS | Jet Black |
| WARRANTY | 5 years frame |
| WEIGHT | |
| MISCELLANEOUS | • OST+ suspension design • Mixed (“Mullet”) wheels: 29″ front, 27.5″ rear • Internal cable routing • Includes Bosch 2A battery charger |
