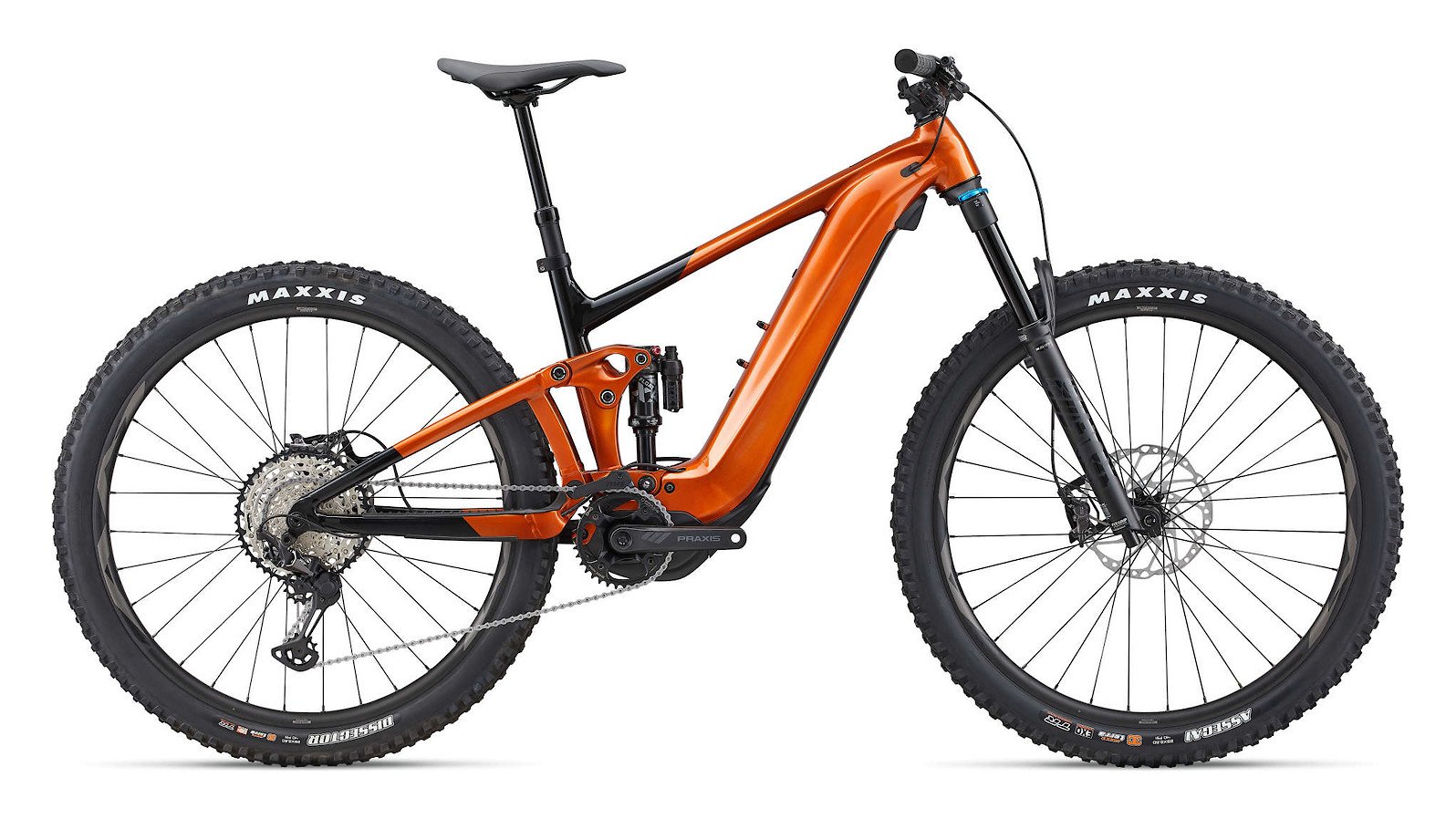

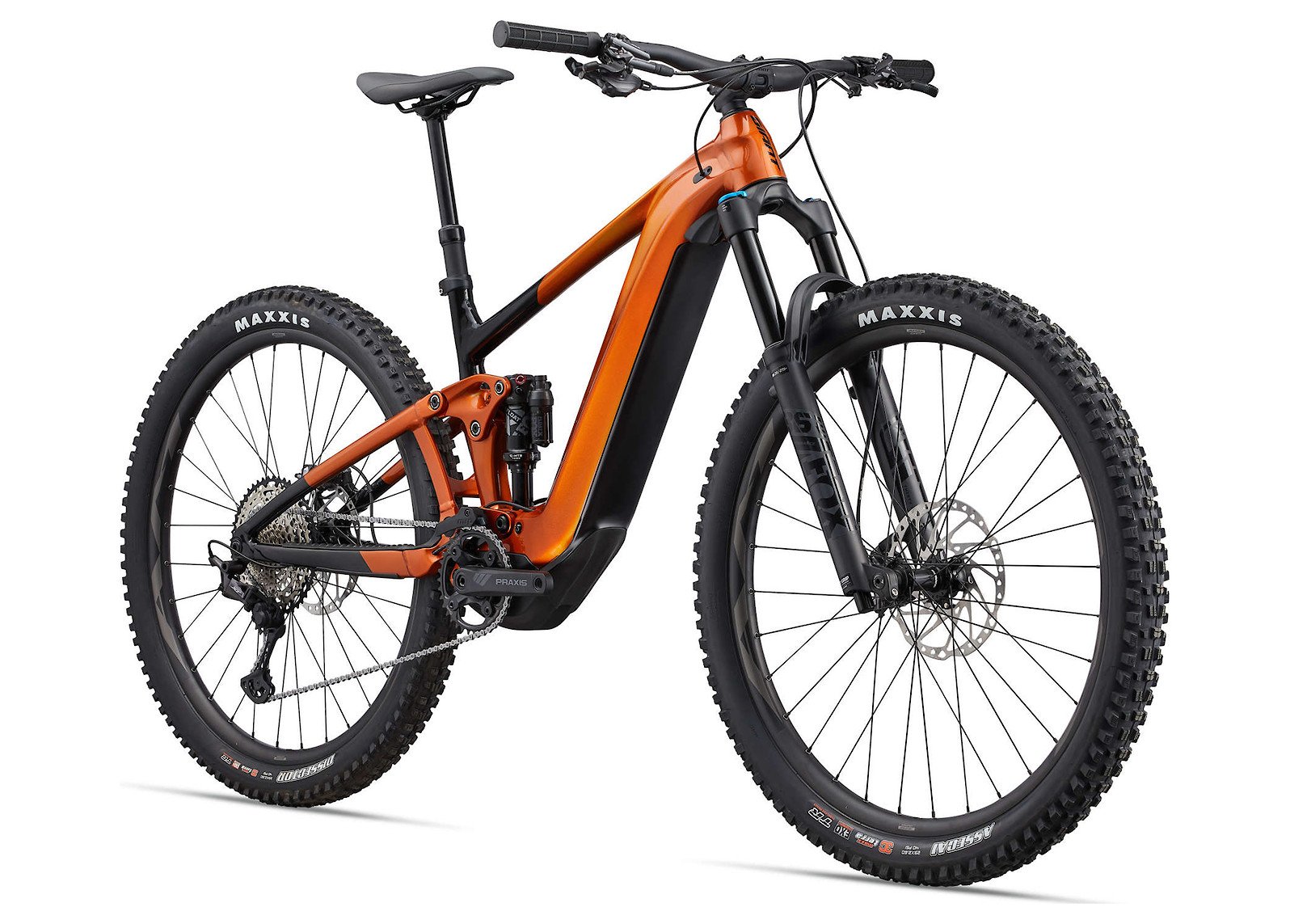

Giant Trance X E+ 1 E-Bike For Sale
The Giant Trance X E+1 stands for maximum power, best range, and smart e-bike integration. The trail all-rounder feels comfortable on any terrain. The new Yamaha SyncDrive Pro 2 motor offers full E-MTB power and pushes the Trance X E+1 effortlessly up every climb.
The new RideControl GO multifunction unit integrated into the top tube provides all-important e-bike information. In combination with the minimalist RideControl Ergo 3 control unit, the cockpit of the Giant Trance X E+1 looks particularly clean and tidy.
This keeps the focus on the trail at all times. And these cannot be long enough. The Trance X E+1 is equipped with the new 750 Wh EnergyPak XL and offers massive battery power. And if that is not enough, the Giant Trance X E+1 is also range extender compatible.
Features Of The 2022 Giant Trance X E+1 E-MTB
- 29″ aluminum frame
- SyncDrive Pro2 Yamaha motor – 85 Nm
- RideControl GO multifunction unit integrated into the top tube
- RideControl Ergo 3 handlebar control unit
- EnergyPak XL 750 Wh Intube battery pack
- compatible with Range Extender
recommends the Giant Trance X E+1 is perfect for e-mountain bikers looking for variety and plenty of power. On the most diverse trails, the Trance X E+1 is simply fun. The new motor and battery also set new standards in terms of range and performance.
Specifications of Giant Trance X E+ 1 E-Bike – 2022
| PRODUCT | Giant Trance X E+ 1 E-Bike |
|---|---|
| MODEL YEAR | 2022 |
| RIDING TYPE | Trail, Enduro / All-Mountain |
| RIDER | Unisex |
| SIZES AND GEOMETRY |
S, M, L, XL
|
| WHEEL SIZE | 29″ |
| E-BIKE CLASS | Class 1: Pedal Assist (Pedelecs) |
| MOTOR | Giant SyncDrive Pro (powered by Yamaha), 85Nm max torque |
| BATTERY | Giant EnergyPak Smart, integrated; EnergyPak Plus 250 Wh range extender compatible |
| BATTERY CAPACITY | 750 Wh |
| DISPLAY/REMOTE | Display: Giant RideControl GO, frame integrated LED display, ANT+ wireless compatible Remote: Giant RideControl Ergo 3, grip integrated |
| MODES | Three support modes with Smart Assist technology |
| MAX SPEED WITH ASSIST | 20 mph (32 km/h) |
| FRAME MATERIAL | Aluminum |
| FRAME MATERIAL DETAILS | ALUXX SL-Grade alloy; Advanced Forged Composite upper rocker; molded chainstay, seatstay, and down tube protection |
| REAR TRAVEL | 140mm |
| REAR SHOCK | FOX FLOAT X Performance, EVOL sleeve, 3-position lever, trunnion mount, 185mm x 52.5mm |
| FORK | FOX FLOAT 36 Performance, GRIP damper, e-optimized, 44mm offset |
| FORK TRAVEL | 150mm |
| HEAD TUBE DIAMETER | Tapered, 1.125″ top, 1.5″ bottom |
| HEADSET | |
| HANDLEBAR | Giant Contact Trail, 780mm width, 35mm clamp diameter |
| STEM | Giant Contact SL, 35mm bar clamp Length: 40mm (SM/MD), 50mm (LG/XL) |
| GRIPS | Giant Tactal Pro-E, single lock-on |
| BRAKES | Shimano Deore XT M8120, 4-piston, 220mm CENTER LOCK rotors |
| BRAKE LEVERS | Shimano Deore XT M8100, I-SPEC EV clamps |
| DRIVETRAIN | 1x |
| SHIFTERS | Shimano Deore XT M8100, 12-speed |
| FRONT DERAILLEUR | None |
| REAR DERAILLEUR | Shimano Deore XT M8100, 12-speed, SHADOW RD+ |
| CHAINGUIDE | MRP upper slider |
| CRANKS | Praxis e-Cadet+, custom forged Length: 160mm (SM), 165mm (MD/LG), 170mm (XL) |
| CHAINRINGS | Praxis Wave, cold-forged 4130 premium steel, 36 tooth |
| PEDALS | None |
| CHAIN | KMC e.12 Turbo, EcoProteq, e-bike optimized, 12-speed |
| CASSETTE | Shimano SLX M7100, 12-speed, 10-51 tooth |
| RIMS | Giant AM, 30mm inner width, tubeless-ready |
| HUBS | Shimano MT410, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver |
| SPOKES | Front: Sapim Race Rear: Sapim E-Lite |
| TIRES | Front: Maxxis Assegai, EXO, TR, foldable, 29″ x 2.6” Rear: Maxxis Dissector, EXO+, TR, foldable, 29″ x 2.6” |
| SADDLE | Giant Romero Trail |
| SEATPOST | Giant Contact Switch dropper Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL) |
| SEATPOST DIAMETER | 30.9mm |
| SEATPOST CLAMP | Single-bolt |
| REAR DROPOUT / HUB DIMENSIONS | 148x12mm Boost |
| MAX. ALLOWED WEIGHT | 156 kg (343.92 lbs) |
| BOTTLE CAGE MOUNTS | One inside front triangle |
| COLORS | Amber Glow |
| WARRANTY | Lifetime frame, 1-year paint, and components |
| WEIGHT | 24.6 kg (54.2 lbs) |
| MISCELLANEOUS | • Maestro rear suspension design • Geometry adjustable via a flip-chip in rocker link • Internal cable routing • SRAM UDH (Universal Derailleur Hanger) • Drive system tuneable/controlled by Giant E-Bike app, which provides navigation, health, and fitness functions • Includes tubeless kit (sealant, valves, levers, manual, tool) • Giant EnergyPak Plus Range Extender Compatible • Giant Recon series e-bike lights (available separately) are direct-connectible |
