Description

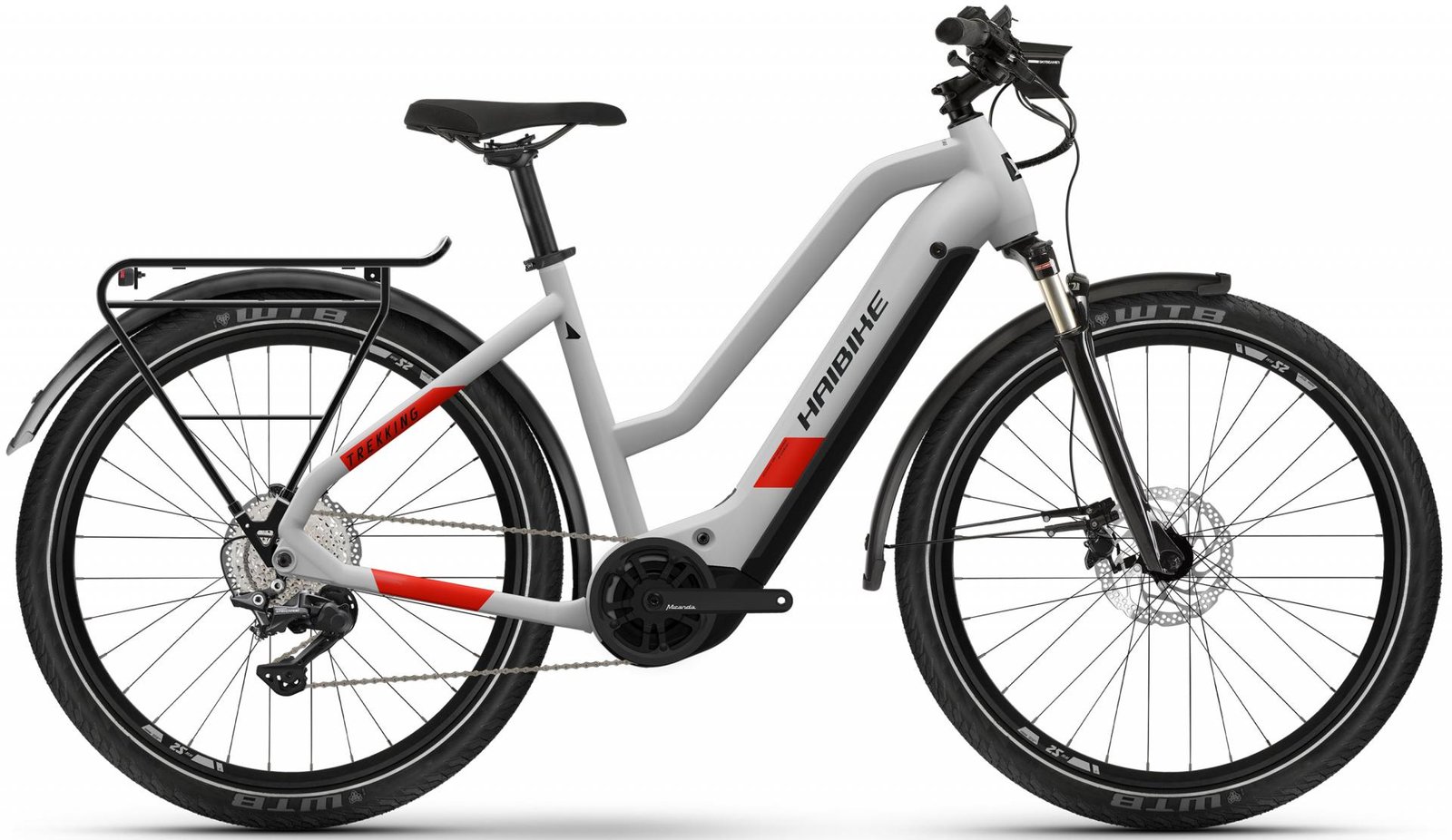

Specifications of Haibike Trekking 7 Mid E-bike
| AT A GLANCE | |
|---|---|
| E BIKE GUY | Trekking electric bike |
| MODEL YEAR | 2022 |
| MOTOR SUPPORT | 25 |
| CIRCUIT MANUFACTURER | Shimano |
| CIRCUIT TYPE | derailleur |
| SUSPENSION | suspension fork |
| BRAKE TYPE | Hydraulic disc brake |
| COLOR | Blue / Metallic Sand – Gloss; Cool Grey / Red/black – Matt |
| FRAME SIZE | S, M, L, XL |
| WHEEL SIZE | 27.5” |
| FRAME SHAPE | Trapeze |
| DRIVE UNIT | |
| ENGINE | Yamaha PW-ST 36V 250W |
| BATTERY PACK | 630Wh |
| SCREEN | Yamaha Multi Switch, 2.8”, TFT display |
| CHARGER | Yamaha fast charger, 4A |
| CIRCUIT & DRIVE | |
| CIRCUIT | Shimano Deore M5100, 11-speed derailleur |
| SHIFTER | Shimano Deore M5100, trigger switch |
| REAR DERAILLEUR | Shimano Deore M5100, 11 speed |
| CRANKSET | Haibike, forged |
| CASSETTE | Shimano M5100, 11-51 teeth |
| CHAIN | KMC e11S |
| FRAME & FORK | |
| FRAME | Haibike Trekking, 6061 aluminum |
| FORK | SR Suntour Mobie A32, coil spring, 15 x 100mm thru-axle, 75mm travel |
| TAX RATE | A Head Tapered |
| BRAKE | |
| BRAKING SYSTEM | Shimano MT410, hydraulic disc brake, aluminum, 180mm |
| BRAKE LEVER | Shimano MT402, aluminum |
| IMPELLERS | |
| RIMS | Schürmann Yak25, eyelets, double wall rim, aluminium |
| HUBS (F/H) | Shimano MT400-B, center lock / Shimano MT410-B, center lock |
| SPOKES | Sapim Leader, black |
| TIRES | WTB Groov-E, 61-584, reflective strips |
| COCKPIT | |
| HANDLEBARS | XLC top flat, 720 mm |
| STEM | XLC Alu, A-Head |
| HANDLEBAR GRIPS | XLC Comfort bo3 |
| SEAT POST | XLC, Patent, 31.6mm, Aluminum |
| PEDALS | VP E461, aluminum, with reflector |
| SADDLE | XLC Trekking |
| FURNISHING | |
| FRONT LIGHT | Haibike Skybeamer 150, 50 lux |
| TAILLIGHT | AXA Juno Ebike |
| PORTER | Massload system carrier, MIK |
| FENDERS | Eurofender Tempo, chrome plastic |
| STAND | Ursus Mooi, adjustable |
| MISCELLANEOUS | |
| MAXIMUM WEIGHT ALLOWED | 130kg |
