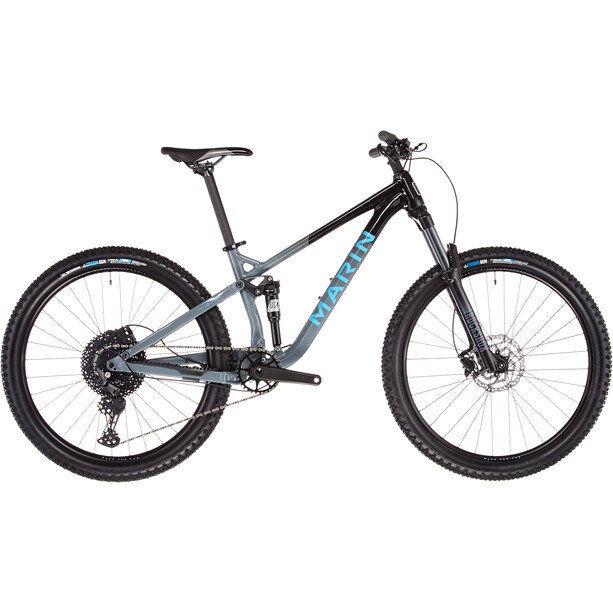

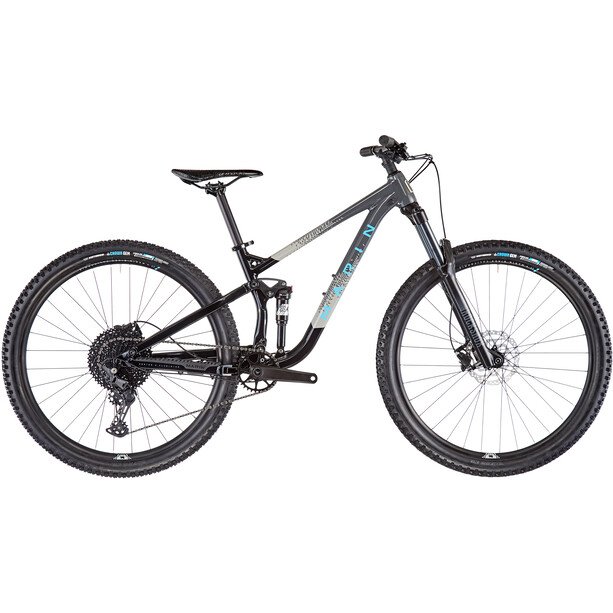

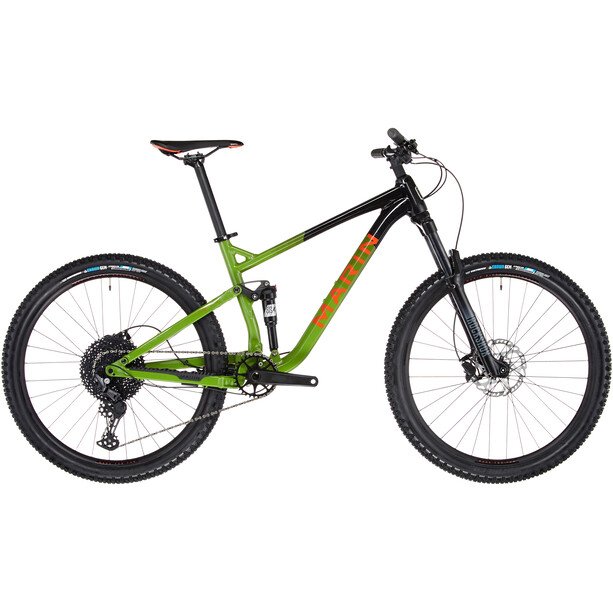

Buy 2022 Marin Rift Zone 1 Mountain Bike Online
Cycling should be fun, and having fun on the trail was Marin’s main focus when they created the Rift Zone. Built around the MultiTrac suspension system, the Rift Zone is their most playful and fun short travel fully to date. Whether you’re a beginner or a high-performance rider, you’ll fall in love with mountain biking over and over again on the Rift Zone.
Fun and More Fun
The Rift Zone is Marin’s most playful trail bike, built to search for airtime at every root, find new lines, and end every ride with a really big grin. A full-suspension fun instrument for every trail, with an unbelievable price/performance ratio.
6061 Aluminum Frame Series 3 & 27.5″ Wheels
The Rift Zone features a butted and hydroformed 6061 Series 3 aluminum frame, 120mm Travel MultiTrac suspension technology, and nimble 27.5″ wheels. The 27.5″ tires suit most riders’ tastes and results in a light and responsive setup. The most playful bike in our program!
MultiTrac suspension technology
The renowned and continuously optimized MultiTrac system gives you wonderfully balanced driving pleasure: You master the hardest drops and enjoy the excellent climbing properties. The rocker link with its progressive leverage curve ensures optimal sensitivity on the rear wheel and gives you the security of a long-travel damper.
Internal cable routing
All Rift Zone models are prepared for internal cable routing for the dropper post and rear derailleur: no risk of snagging, but a clean look.
148x12mm thru-axle
Boost Spacing at the front and the 148x12mm Boost hub at the rear ensure greater stability of the wheel and frame and allow a future upgrade to other wheels on Rift Zone 2 and 3.
Adjustable Dropouts The Rift Zone 1 has 141x9mm
axles that are interchangeable with 148x12mm standard Boost hubs. Affordable today, ready for your next upgrade tomorrow!
Specifications
Purpose
- Marathon/Cross Country, All Mountain/Enduro, All Mountain/Trail
weight (approx.)
- 14.34kg
wheel size
- 27.5 inches
Total number of gears
- 11 Gears
scope of delivery
- including pedals: Yes
Frame
- Design type: full suspension
- Material type: aluminum
- Other features: Series 3, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148×12), 73mm Threaded BB with ISCG05
- Damper brand: X Fusion
- Damper Model: O2 Pro R, custom tune, 210x50mm, M8x25mm hardware
- Travel (mm): 120
Fork
- Design type: suspension fork
- Brand: RockShox
- Type: Recon Silver, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Stealth, 37mm Offset
Suspension fork
- Travel (mm): 130mm
Rear derailleur
- Drive Type: derailleur
- Number of gears: 11
- Brand: Shimano
- Type: Deore
shifter
- Model: Shimano Deore, 11-speed, SL-5100R
crank
- Model: Marin, Narrow Wide Chainring, Boost Spacing
- Translation 1: 32 teeth
bottom bracket
- Model: Externally sealed cartridge chamber
Chain
- Model: KMC X-11, silver/black
sprocket
- Ratio gear rim (teeth): 11-51 teeth
- Model: SunRace
brakes in front
- Brand: Shimano
- Type: BR-MT200
- Braking system: hydraulic disc brake
- Brake disc diameter: 180mm
rear brakes
- Brand: Shimano
- Type: BR-MT200
- Braking system: hydraulic disc brake
- Brake disc diameter: 180mm
brake lever
- Model: Shimano BL-MT201
handlebars
- Design type: rise bar
- Model: Marin mini riser, 780mm width, 28mm rise, 5º up, 9º back
- Material: aluminum
stem
- Design type: A Head
- Model: Marine 3D, 35mm length
- Material: aluminum
handles
tax rate
- FSA #57E, Semi Sealed Cartridge Bearings, 1 1/8″ x 1 1/2″
saddle
- Marin Speed Concept
seat post
- Design type: patent support
- Diameter: 30.9mm
- Type: Marin
- Material: aluminum
hub in front
- Model: Shimano HF-MT400B, 110x15mm, center lock
rear hub
- Model: Shimano HB-MT200B, 141 QR, Centerlock, standard freewheel body
rims
- Model: Marin, double-wall alloy, 29mm internal width, 32H, tubeless compatible
- Material: aluminum
- Design type: hollow chamber
- Size (in inches): 27.5 inches
spokes
- 14g, black, stainless steel
tires in front
- Size (in inches): 27.5
- Broad: 2.3 inches
- Model: Vee Tire Crown Gem, Dual Control Compound, Tubeless Ready
rear tires
- Size (in inches): 27.5
- Broad: 2.3 inches
- Model: Vee Tire Crown Gem, Dual Control Compound, Tubeless Ready
model year
- 2022
